CONTAINER SPECIFICATIONS
Dry Container
This kind of container is made of strong steel or aluminium, which provides durability and ensures the safe transportation of general cargo over long distances. It features sturdy doors for easy loading and unloading
Purpose
The dry van container is very versatile and can hold various types of cargo, including palletized goods, machinery, electronics, furniture and non-perishable goods.

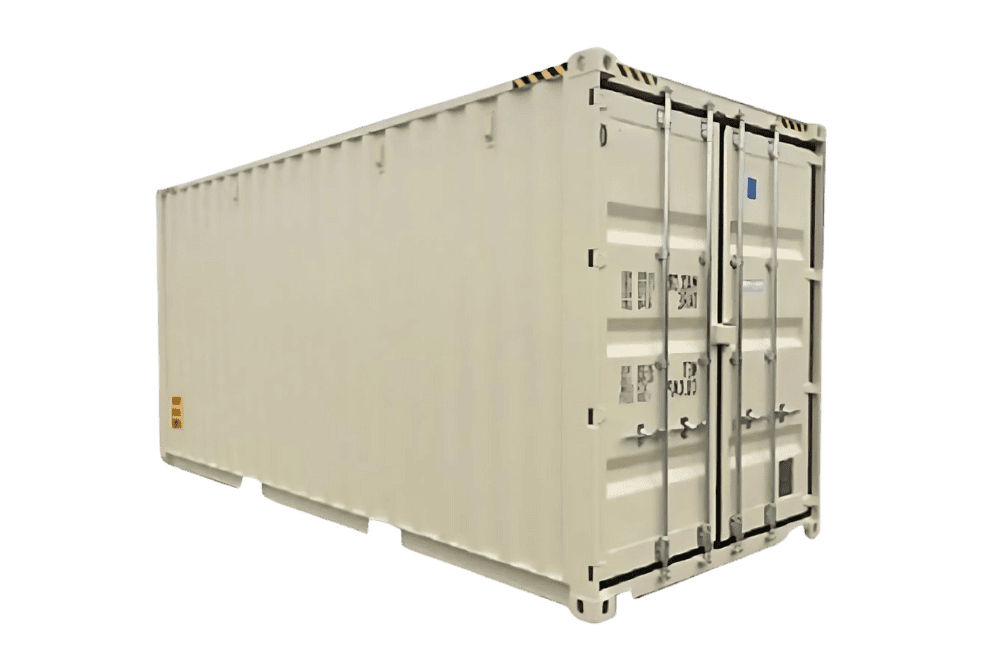

20’GP (GENERAL PURPOSE)
| Specification for | 8’6″ (LxWxH) (mm) |
|---|---|
| External Measurement | 6058 x 2438 x 2591 mm |
| Internal Measurement | 5637 x 2338 x 2238 mm |
| Door Opening Width | 2338 mm |
| Door Opening Height | 2280 mm |
| Internal Volume | 33.2 cu.m |
| Tare | 2250 kg |
| Payload | 28320 kg |
| Max Gross WT | 30480 kg |

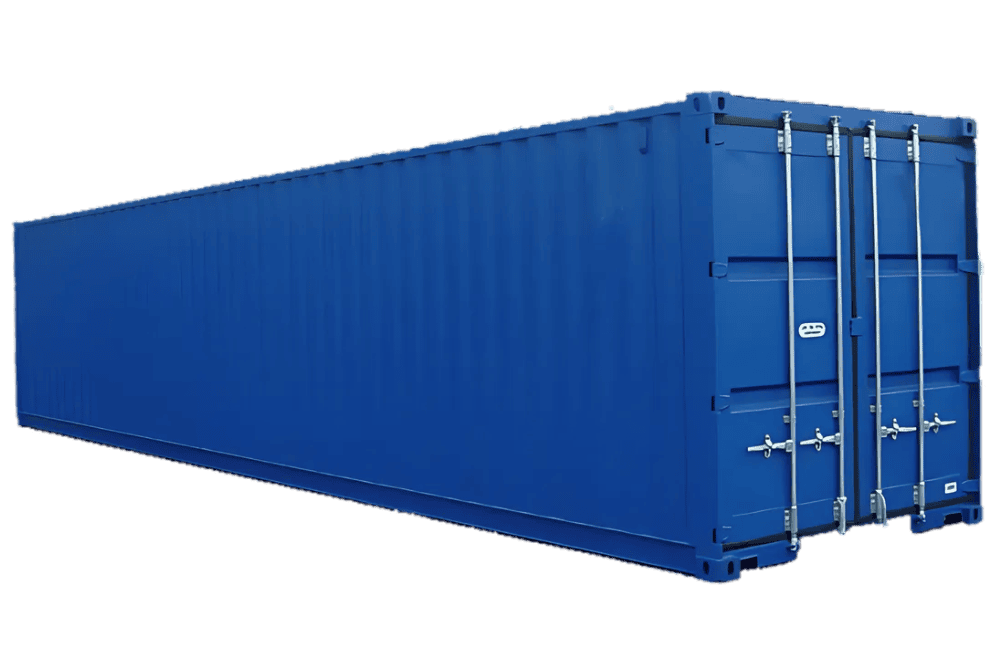

40’GP (GENERAL PURPOSE)
| Specification for | 8’6″ (LxWxH) (mm) |
|---|---|
| External Measurement | 12192 x 2438 x 2591 mm |
| Internal Measurement | 12032 x 2350 x 2392 mm |
| Door Opening Width | 2338 mm |
| Door Opening Height | 2280 mm |
| Internal Volume | 57.7 cu.m |
| Tare | 3700 kg |
| Payload | 26780 kg |
| Max Gross WT | 30480 kg |

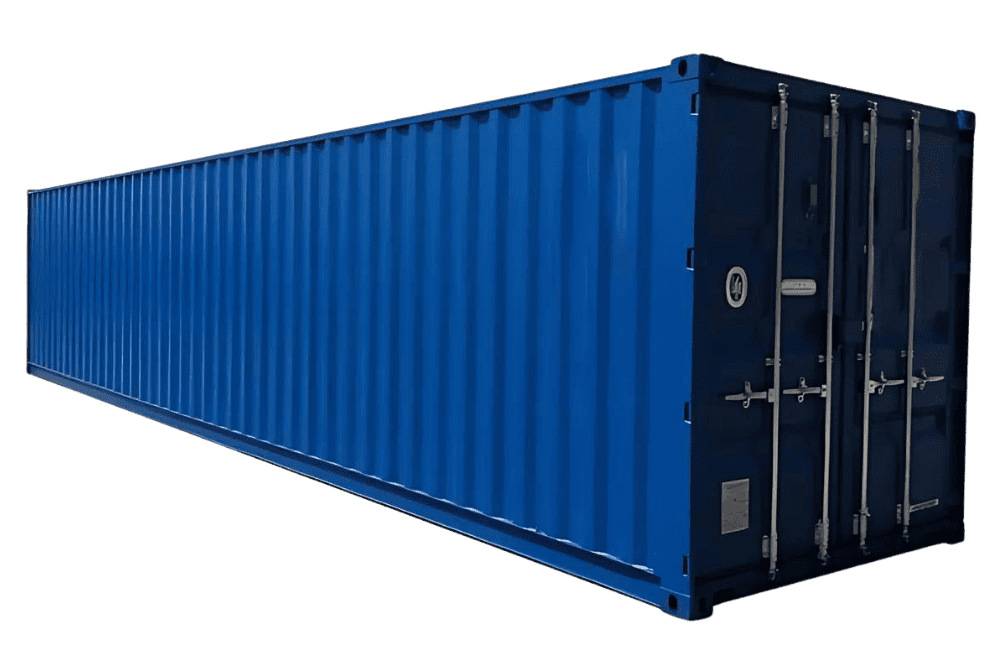

40’HC (HIGH CUBE)
| Specification for | 9’6″ (LxWxH) (mm) |
|---|---|
| External Measurement | 12192 x 2438 x 2896 mm |
| Internal Measurement | 11628 x 2438 x 2896 mm |
| Door Opening Width | 2338 mm |
| Door Opening Height | 2585 mm |
| Internal Volume | 76.2 cu.m |
| Tare | 3820 kg |
| Payload | 26660 kg |
| Max Gross WT | 30480 kg |
